鋁合金一級傳動裝置

Aluminum alloy single-stage drive device

產品簡介

本產品外殼為鋁合金材質、表面美觀大方。附有結合子，適應性強。采用蝸輪蝸桿傳動副，輸出扭矩大，自鎖可靠。適用于90°回轉的蝶閥、球閥、旋塞閥、調節閥等閥門的控制。

The shell of this product is made of aluminum alloy with beautiful surface. With binders, strong adaptability. Using worm gear and worm transmission pair, output Torque is large, self-locking reliable. Suitable for 90 Rotary Butterfly Valve, ball valve, plug valve, control valve and other valves control.

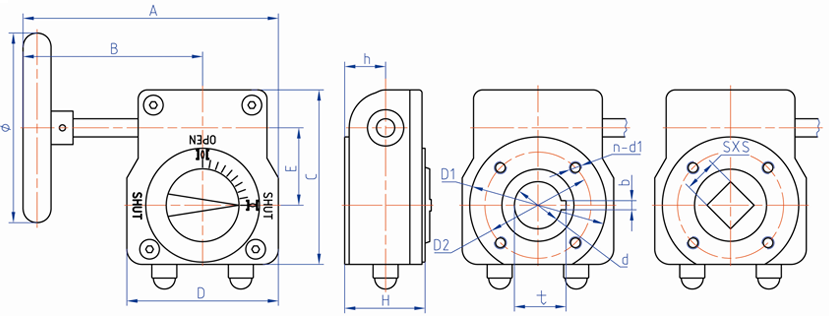

外形尺寸表

型號/ Model

速比/Ratio

輸出扭矩

Output(N.m)

輸入扭矩

Input(N.m)

手輪直徑

Hand-wheel dia(mm)

A

B

C

D

E

h

H

Φ

重量/WT(kg)

3DⅢ-10

40:1

150

18.5

100

139

99

98

80

42.5

26

48

120

1.45

3DⅢ-15

37:1

250

34

120

165

115

115

100

50

27

54

140

1.9

3DⅢ-50

45:1

750

83

300

293

220

155

146

60

38

71

300

5.2

3DⅢ-120

40:1

1200

150

400

410

323

191

175

80

39.5

80

400

9.2

連接尺寸表

型號/ Model

適用閥門口徑

Available opening of butterfly valve

d

b

t

S×S

D1

D2

n-d1

位置/Position

(+   ×)

3DⅢ-10

2＂- 4＂

15.9

5

18.2


80

50

70

4-M6

4-M8

×

-

-

-

9×9

-

-

-

11×11

3DⅢ-15

5＂- 6＂

19.05

5

21.35


89

70

4-M8

×

-

-

-

9×9

-

-

-

11×11

-

-

-

14×14

-

-

-

17×17

3DⅢ-50

8＂- 10＂

28.6

8

31.9


140

102

4-M10

×

-

-

-

19×19

-

-

-

22×22

3DⅢ-120

12＂- 14＂

31.8

8

35.1


175

140

4-M16

×

-

-

-

22×22

-

-

-

27×27
