本產體積小、重量輕，結構合理、輸出扭矩大，具有可靠的自鎖性。在M00基礎上合理改進，適當增加速比，使操作更加便利。適用于90°回轉的蝶閥、球閥、旋塞閥等閥門的控制。The product has small volume, light weight, reasonable structure, large output torque, and reliable self-locking. On the basis of M00, make reasonable improvement and appropriately increase the ratio to make the operation more convenient. It is applicable to the control of butterfly valve, ball valve, cock valve and other valves with 90 ° rotation.
本產體積小、重量輕，結構合理、輸出扭矩大，具有可靠的自鎖性。在M00基礎上合理改進，適當增加速比，使操作更加便利。適用于90°回轉的蝶閥、球閥、旋塞閥等閥門的控制。The product has small volume, light weight, reasonable structure, large output torque, and reliable self-locking. On the basis of M00, make reasonable improvement and appropriately increase the ratio to make the operation more convenient. It is applicable to the control of butterfly valve, ball valve, cock valve and other valves with 90 ° rotation.
主要件明細表
MX16/S3~MX40/S4
MX40/D10~MX70/D20
技術參數
型號
扭矩Nm
速比
輸入扭矩Nm
最大內孔
允許法蘭
手輪
重量Kg
MX16/S3
4000
169:1
110
75
F14、F16
500
MX36/S3
5200
176:1
135
80
F14、F16、F25
500
MX36/S4
6500
224:1
135
80
F14、F16、F25
500
MX40/S4
9500
290:1
155
110
F25、F30
600
型號
扭矩Nm
速比
輸入扭矩Nm
最大內孔
允許法蘭
手輪
重量Kg
MX40/D10
11000
444:1
125
110
F25、F30
600
MX50/D10
16000
495:1
160
110
F25、F30
600
MX60/D15
24000
845:1
150
160
F25、F30、F35
600
MX65/D15
32000
986:1
165
160
F25、F30、F35
700
MX65/D20
40000
1273:1
165
160
F25、F30、F35
700
MX70/D20
51000
1490:1
175
160
F30、F35、F40
700

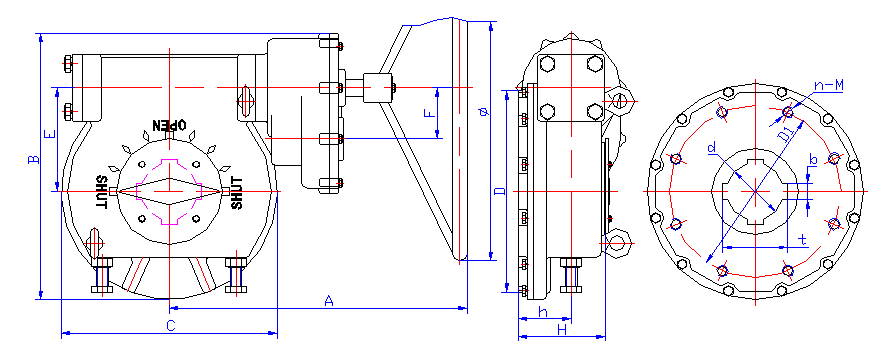

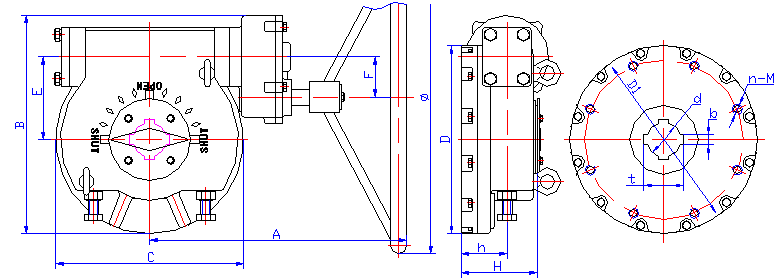

外形尺寸表
型號
d
b
t
D1
n-M
A
B
C
D
E
F
φ
H
h
MX16/S3
55
16
63.6
165
4-M20
388
300
242
210
112
65
500
107
63
MX36/S3
65
16
73.6
254
8-M16
411
348
300
300
132
65
500
121
74
MX36/S4
80
22
90.8
254
8-M16
419
372
300
300
132
91
500
121
74
MX40/S4
80
22
90.8
254
8-M16
466
434
360
350
164
91
600
145
89
型號
d
b
t
D1
n-M
A
B
C
D
E
F
φ
H
h
MX40/D10
80
22
90.8
254
8-M16
517
439
360
350
164
89
600
145
89
MX50/D10
80
22
90.8
254
8-M16
517
463
375
350
180
89
600
151
92
MX60/D15
110
32
124.8
298
8-M20
567
560
450
415
216
114
600
166
100
MX65/D15
110
32
124.8
356
8-M30
630
623
510
415
249
114
700
202
118
MX65/D20
120
32
134.8
356
8-M30
630
639
510
415
249
126
700
202
118
MX70/D20
120
32
134.8
356
8-M30
662
715
590
475
285
126
700
214
128
