This product in accordance with the 3C certification requirements，It is based on ordinary actuator, increase the micro switch, can provide to remote switch signal,indicating the valve switch state, The switches output signal when the valve will full open.

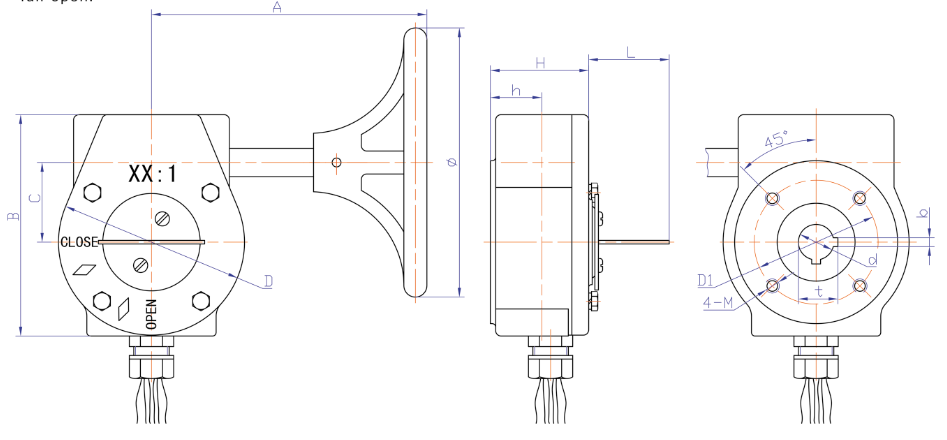

技術參數
型號/ Model
額定扭矩
Torque
（N.m）
速比
Ratio
適用蝶閥口徑/Available Opening of butterfly valve
d
b
t
D1
4-M
A
B
C
D
Φ
H
h
L
公制/ Metric system
英制/ British system
3D-15
170
24:1
50-80
2-3”
12.7
3
14.1
70
4-M8
156
125
45
105
150
58
29
46
100
4”
15.9
5
18.2
125-150
5-6”
19.05
5
21.35
3D-50
750
30:1
200
8”
22.2
5
24.5
102
4-M10
240
167
63
142
300
69
35
46
250
10”
28.6
8
31.9
3D-120
1200
50:1
300-350
12”-14”
31.8
8
35.1
125
4-M12
229
190
78
156
300
73
38
47
電信號說明
1.開關參數：5A 250VAC

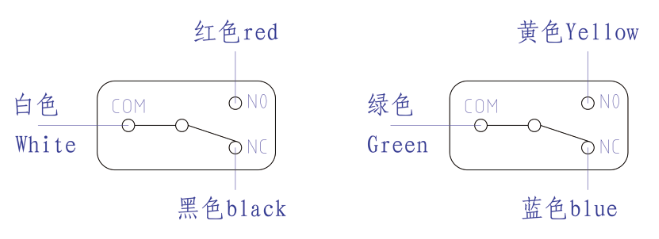

2.引出導線接線如上圖所示:
3.閥門將要開啟時，微動開關動作。
Electrical signal description
1.Switch parameters:5A 250VAC.
2.Wiring diagram is shown.
3.The valve will open, micro switch provide signal.
This product in accordance with the 3C certification requirements，It is based on ordinary actuator, increase the micro switch, can provide to remote switch signal,indicating the valve switch state, The switches output signal when the valve will full open.
技術參數
型號/ Model
額定扭矩
Torque
（N.m）
速比
Ratio
適用蝶閥口徑/Available Opening of butterfly valve
d
b
t
D1
4-M
A
B
C
D
Φ
H
h
L
公制/ Metric system
英制/ British system
3D-15
170
24:1
50-80
2-3”
12.7
3
14.1
70
4-M8
156
125
45
105
150
58
29
46
100
4”
15.9
5
18.2
125-150
5-6”
19.05
5
21.35
3D-50
750
30:1
200
8”
22.2
5
24.5
102
4-M10
240
167
63
142
300
69
35
46
250
10”
28.6
8
31.9
3D-120
1200
50:1
300-350
12”-14”
31.8
8
35.1
125
4-M12
229
190
78
156
300
73
38
47
電信號說明
1.開關參數：5A 250VAC
2.引出導線接線如上圖所示:
3.閥門將要開啟時，微動開關動作。
Electrical signal description
1.Switch parameters:5A 250VAC.
2.Wiring diagram is shown.
3.The valve will open, micro switch provide signal.
This product in accordance with the 3C certification requirements，It is based on ordinary actuator, increase the micro switch, can provide to remote switch signal,indicating the valve switch state, The switches output signal when the valve will full open.
技術參數
型號/ Model
額定扭矩
Torque
（N.m）
速比
Ratio
適用蝶閥口徑/Available Opening of butterfly valve
d
b
t
D1
4-M
A
B
C
D
Φ
H
h
L
公制/ Metric system
英制/ British system
3D-15
170
24:1
50-80
2-3”
12.7
3
14.1
70
4-M8
156
125
45
105
150
58
29
46
100
4”
15.9
5
18.2
125-150
5-6”
19.05
5
21.35
3D-50
750
30:1
200
8”
22.2
5
24.5
102
4-M10
240
167
63
142
300
69
35
46
250
10”
28.6
8
31.9
3D-120
1200
50:1
300-350
12”-14”
31.8
8
35.1
125
4-M12
229
190
78
156
300
73
38
47
電信號說明
1.開關參數：5A 250VAC
2.引出導線接線如上圖所示:
3.閥門將要開啟時，微動開關動作。
Electrical signal description
1.Switch parameters:5A 250VAC.
2.Wiring diagram is shown.
3.The valve will open, micro switch provide signal.
